Manual Stacker

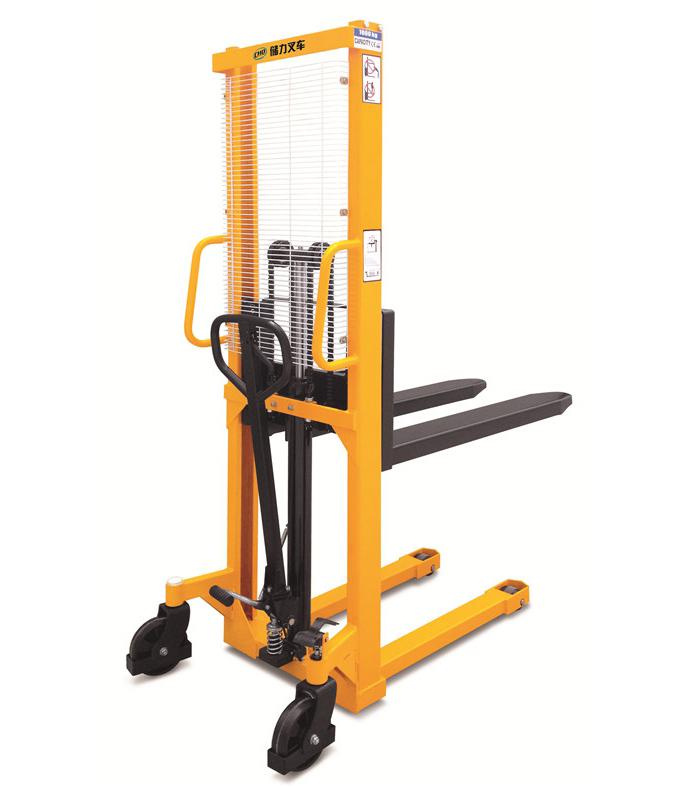

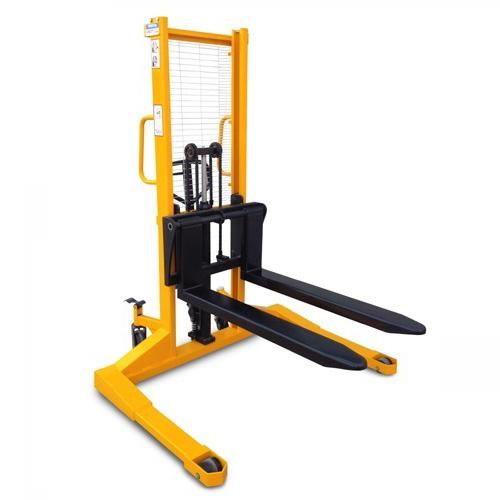

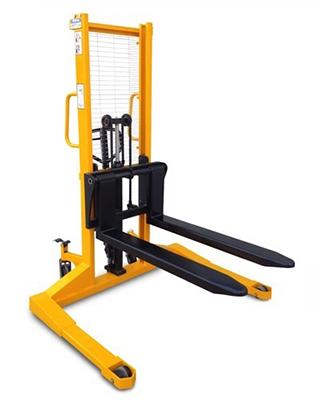

Here at Cholift, we provide manual straddle stackers and fork over manual stackers to satisfy the different working environments and strength demands of our valued customers. The maximum lifting height of this equipment is 3000mm with a load capacity limit of 2T.

Features

Optional matching dual rate pump to increase working efficiency and optimized performance.
Adjustable descending speed.
Excellent oil injection hole design to realize accurate oil adding. It prevents oil leakage and makes maintenance more convenient.

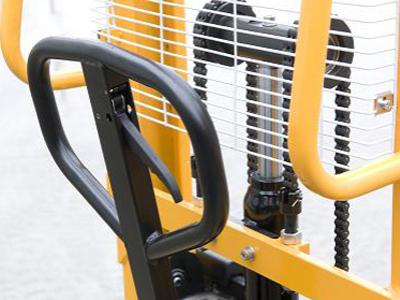

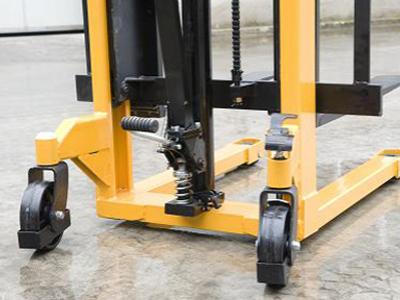

Regardless of loading weight, the lifting speed of our manual pallet stackers is always constant and smooth without impact. The stacker can be lifted by handle or foot pedal.

Technical parameters

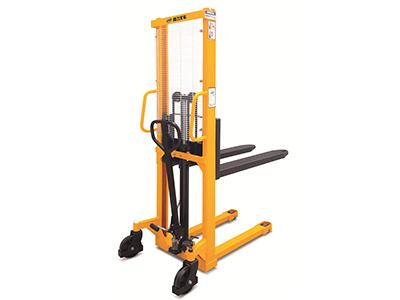

SDA Manual hydraulic stacker
Model No.		SDA1016	SDA1516	SDA2016	SDA1025	SDA1030	SDA1525	SDA1530
Capacity	Q（kg）	1000	1500	2000	1000	1000	1500	1500
Load center	C（mm）	500	400	400	500	500	400	400
Service weight	kg	250	270	290	290	316	310	336
Lowered mast height	h1（mm）	2086	2086	2086	1836	2086	1836	2086
Lifting height	h3（mm）	1600	1600	1600	2500	3000	2500	3000
Overall height	h4（mm）	2086	2086	2086	3000	3500	3000	3500
Fork lowered height	h13（mm）	90
Overall length	l1（mm）	1360
Overall width	b1（mm）	765/980	765/980	765/980	765/980	765/980	765/980	765/980

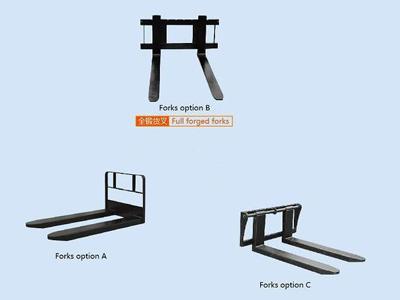

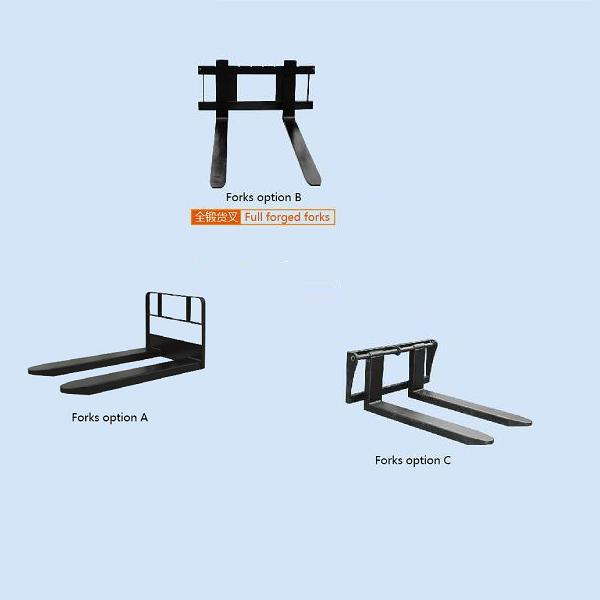

Fork size	s/e/l（mm）	Fxied forks 60×142×1070 and 60×142×1150mm
Fork width	b5	550/680/840/930
Ground Clearance	m1	25
Turning radius	Wa（mm）	1200
Lifting speed laden/unladen	mm/ stroke	9.5/10.5
Lowering speed laden/unladen	mm/s	Hand control
