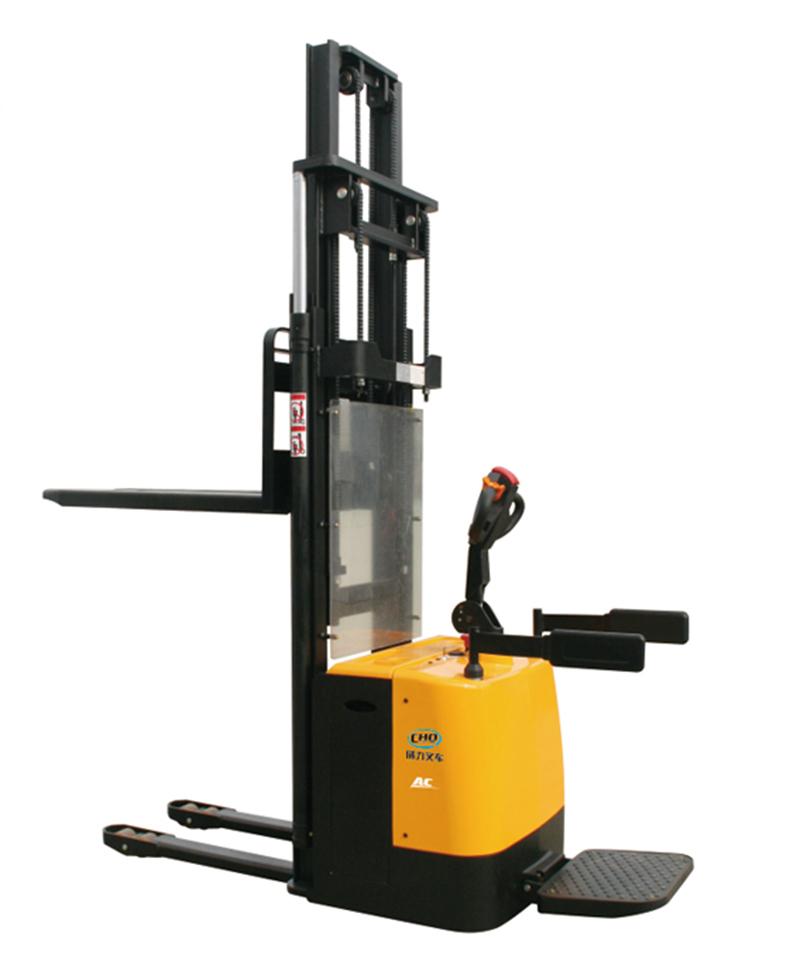

QDA Electric Pallet Stacker
When looking to purchase one of our QDA electric pallet stackers, you can choose from a duplex mast or triplex mast according to your needs. The maximum lifting height of the duplex mast is 3500mm, while the maximum lifting height of the triplex mast is 5500mm. Either way you can count on high performance and high efficiency operation.
Features
(1) Easy maintenance
- An AC driver means lower repair and maintenance costs. The power motor is installed upright, making it easier to test and repair if necessary.
- The battery cover is easy to open so as to facilitate the simple addition of distilled water or electrolytes.
(2) High performance
- High quality hydraulic system provides stable ascending and descending speed with low noise.
- Electronic limit switch can accurately control the maximum lifting height to protect the motor from becoming damaged.
(3) Easy and safe operation
- Emergency reverse driving function.
- Electronic steering system allows the operator to maneuver the equipment more easily.
Technical parameters
| Features | Model | | QDA |
| Drive | | Electric | |
| Operator type | | Standing | |
| Rated capacity | Q(kg) | 1500/2000 | |
| Load center distance | c(mm) | 600 | |
| Wheelbase | Y(mm) | 1355 | |
| Weight | Service weight(with battery) | kg | 1050/1220 |
| Chassis | Wheels | | Polyurethane |
| Steer wheel size | | Φ248×75 | |
| Load wheel size | | Φ80×70 | |
| Additional Wheel | | Φ115×50 | |
| Wheel number, steer wheel/load wheel （x = driving wheel） | | 1x+2/4 | |
| Tread, front | b10(mm) | 632 | |
| Tread, rear | b11(mm) | 385/500 | |
| Dimension | Retracted height | h1(mm) | 2080/1720/1970/2080/2220 |
| Max. lift height | h3(mm) | 1600/2500/3000/3300/3500 | |
| Height, mast extended | h4(mm) | 2180/3080/3580/3880/4180 | |
| Height, fork lowered | h13(mm) | 85 | |
| Overall length | l1(mm) | 2000/2050 | |
| Overall width | b1(mm) | 850 | |
| Fork dimension | S/e/l(mm) | 55/185/1150 | |
| Fork width | b5(mm) | 570/685 | |
| Ground clearance | m2(mm) | 25 | |
| Aisle width for pallets 1000×1200 crossways | Ast(mm) | 2420 | |
| Aisle width for pallets 800×1200 lengthways | Ast(mm) | 2360 | |
| Turning radius | Wa(mm) | 1580 | |
| Performance Data | Traveling speed, laden/unladen | Km/h | 3/3.5 |
| Lifting speed, laden/unladen | m/s | 0.1/0.12-0.08/0.1 | |
| Descending speed, laden/unladen | m/s | 0.15/0.12-0.12/0.1 | |
| Max. gradeability, laden/unladen | % | 8/10 | |
| Traveling brake | | Electromagnetic brake | |
| Motor | Drive motor power | kW | 1.5 |
| Lifting motor power | kW | 3.0 | |
| Battery voltage/rated capacity | V/Ah | 24/210 | |
| Battery weight | Kg | 190 | |
| Turning mode | | Electric power system | |
| Other details | Noise level at operator's ear, according to DIN12053 | dB(A) | 70 |
Headquartered in Ninghai, China’s hub of forklift trucks manufacturing, Cholift Forklift Co. is a trustworthy producer of reliable material handling equipment. Our warehouse equipment include electric forklifts, electric pallet jacks, pallet trucks, hand pallet jacks, and lift table carts. In addition to these outstanding products, we can also offer customers complete handling and industrial storage solutions according to their requirements.
